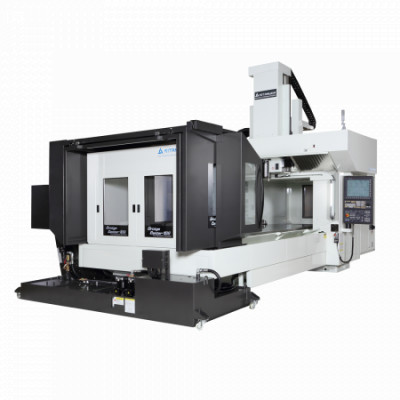

Bridgecenter-10G
|
|
Specifications
Table Size: 53.9” x 118.1” (1,370 x 3,000mm)
Travel (X, Y, Z): 100.0” x 63.6” x 31.5” (2,540 x 1,615 x 800mm)
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity: 40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C): 6.6 Sec. /14 Sec.
Rapid Feed (X, Y, Z): 945ipm (24m/min)
Power Requirement: 50KVA
Features
• Well suited for large part machining requiring increased rigidity and higher levels
of precision and accuracy. Perfect for roughing and finishing of large cavities
and cores in the die/mold industry.
• Positioning Accuracy: ±0.002ммFull Stroke, Repeatability: ±0.00мм
• Rigid Meehanite cast iron construction with induction hardened solid box ways
• #50, Gear Driven, High Speed, High Torque 12,000rpm Dual Contact Spindle
• Patented double column bridge type design provides expansive work envelope
and superior rigidity
• Linear scale feedback in X, Y, Z axes
• Ultra high speed and high precision contour control for smoother and faster machining.
2,800 block/sec. processing speeds
• 13,300 Lb table capacity provides added benefits for larger, heavier, more powerful
machining
|
|
